PAINT AND RUST REMOVAL EQUIPMENT

Power tools

  Power tools
  Power tools

ㆍSpecs

Classification

Unit

Specs

Ability

㎡/h

120

Driving method

Manual

Manual

Motor

size

2300 w

R.P.M

m/min

3900

Noise level

Db

78

Size (LxHxW)

mm

645 X 366 X 400

Weight

Kg

45

Paper size

Ø Ø1

85

Paper particle size

#

24

Wire length

mm

5

Power

v

220

Filter

ea

2

Filter material

2

Wool

Max wind

㎥/min

3.1

Discharged air pressure

mmAq

2550

FAN

w

1240

HANDLE

mm

1000




ㆍHow to disassemble for movement



1. Separate the handle from the body by unfastening the nut below the body(Remove the two plugs).
2. Remove the motor cover and the parts by removing the bolts below the body.
3. Separate the both dust collection boxes by unfastening the part indicated by *. (Separate the hose.)

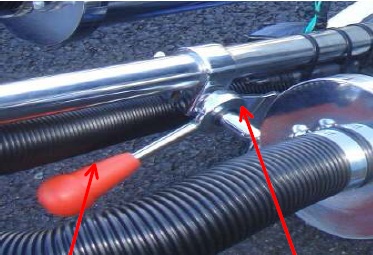

ㆍHow to move the handle up/down


Power tools


* The handle can be moved up or down for your convenience. (Same for the heater box.)

*How to use the handle
1. As shipped from the factory, 1 and 2 are fixed. You should fasten 1 properly.
2. Set the desirable height and turn the knob #2 to fix the handle before use.

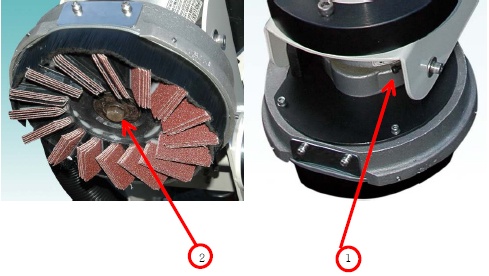

ㆍHow to replace the power disc from your power tool



Power tools


* Cautions for removal

Turn off the power switch before removal.
1. Press STOPPER PIN 1 to fix the rotational axis.
2. Once the axis is fixed, use some tools to turn 2 counterclockwise.
3. If you want to assemble it, turn it clockwise.

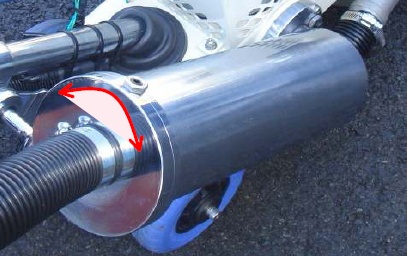

ㆍManaging the dust collector


Power tools


* Cautions

While operating the machine, for smooth suction, shake off the dust collector's filter every 30 to 40 minutes.

-Filter management-
1. Turn it in the direction of arrow to remove the cap.
2. Remove the filer from the dust box and clean off the dusts.
